Box Making Machine

What is box on demand machine

Feature slitting, slotting, creasing, scoring and trimming in one compact machine.

Can make a box any time with any type and any size.

Changeover time 3-15 seconds.

One operator is enough.

Custom Manufacturing

15 R&D staff, 200 customized projects,more than 6 years experience

Best Quality

PLC: Keyence, Servo Motor: Panasonic, Power: Schneider, Linear: Hiwin

Extended Warranty

The factory offer extended 36 months warranty

Brief introduction

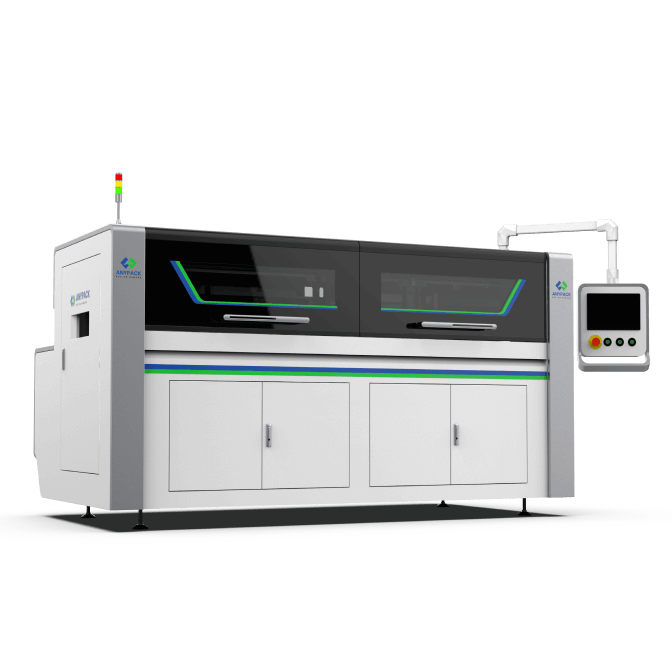

AB2500 making machine is specifically designed to meet the requirement of custom packaging. It is used to make boxes with the requirement of high diversity and moderate productivity. It is applicable for flexible box factory.

Lead Edge Feeder

AUTOMATIC
Support 20-50 pcs of sheets auto feeding.

RELIABILITY
With rugged transmissions and feeding surface, our feeders require minimal maintenance.

ACCURACY
With precise and consistent acceleration, sheets move through the machine with extreme accuracy , even at high speeds.

FEWER JAMS
Through vacuum suction, even reasonably warped sheets move through the machine with ease.

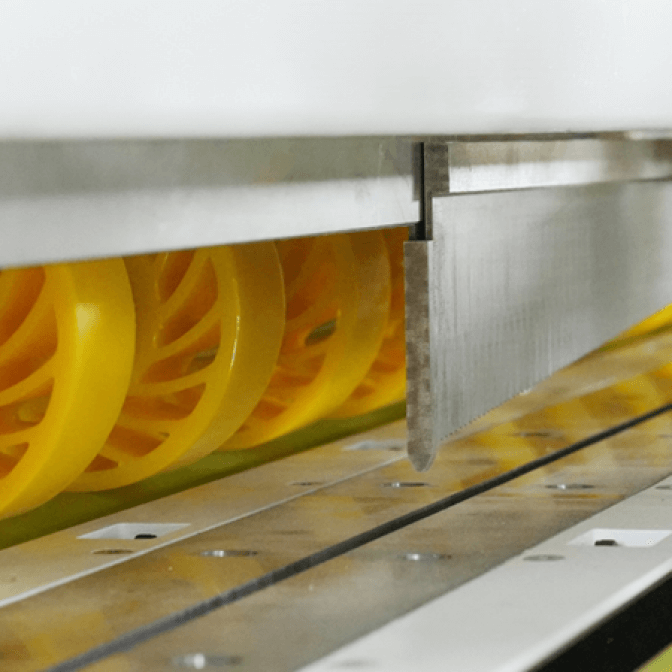

Slotting and Scoring System

· Special SKD11 steel from Japan.
· 2*500mm slotting knives symmetrically integrated on a beam.
· The edges of the carton are very neat and free of burrs.
· Super wear-resistant and does not need to be replaced for several years.
· We can provide customized slotting knives.

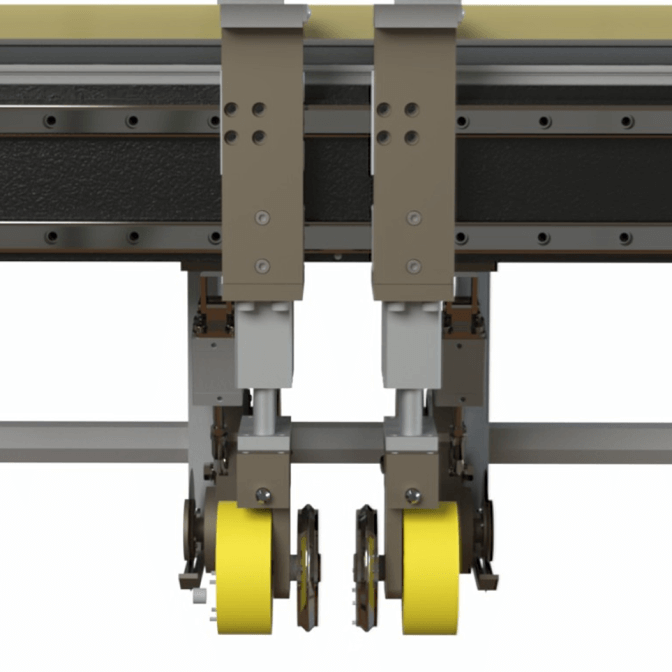

Vertical Slitting System

· Minimum slitting distance is 30mm.
· The box/carton edges are very neat and smooth without burrs.
· It can perfectly replace the cardboard slitter.
· Tungsten steel blade, very sharp and wear-resistant.
· Unique active rotary circular blades technology (4 blades).

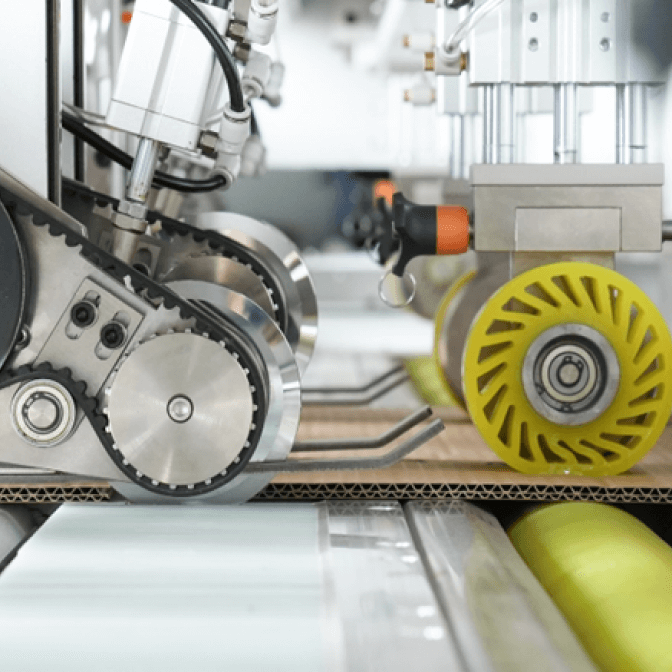

Vertical Creasing System

· Unique 3-line creasing wheels for better box forming and easier bending.
· Standard machine with 75mm creasing wheels.
· 4 automatic creasing wheels.
· Minimum 20mm creasing wheels for option.
· Can make very thin furniture cartons.

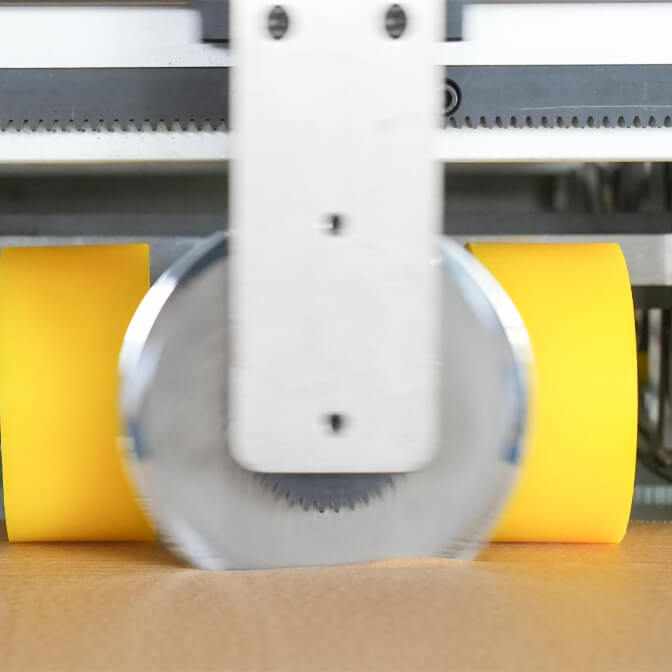

Quickly Cutting System

Tungsten steel blade, quite sharp and wear-resistant.

· Cartons edges are very neat and smooth without burrs.
· Can perfectly replace the cardboard separator.
· Unique active rotary circular blades technology.

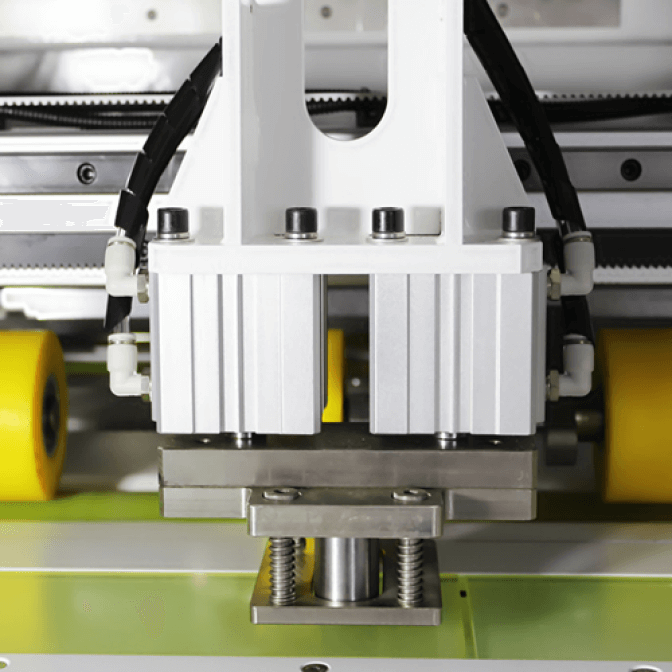

Die Cutting System

· Quickly die-cutting step with perfect effection
· Hand hole, vent hole, special-shaped rounded corners.
· Cheap module and easy replacement.

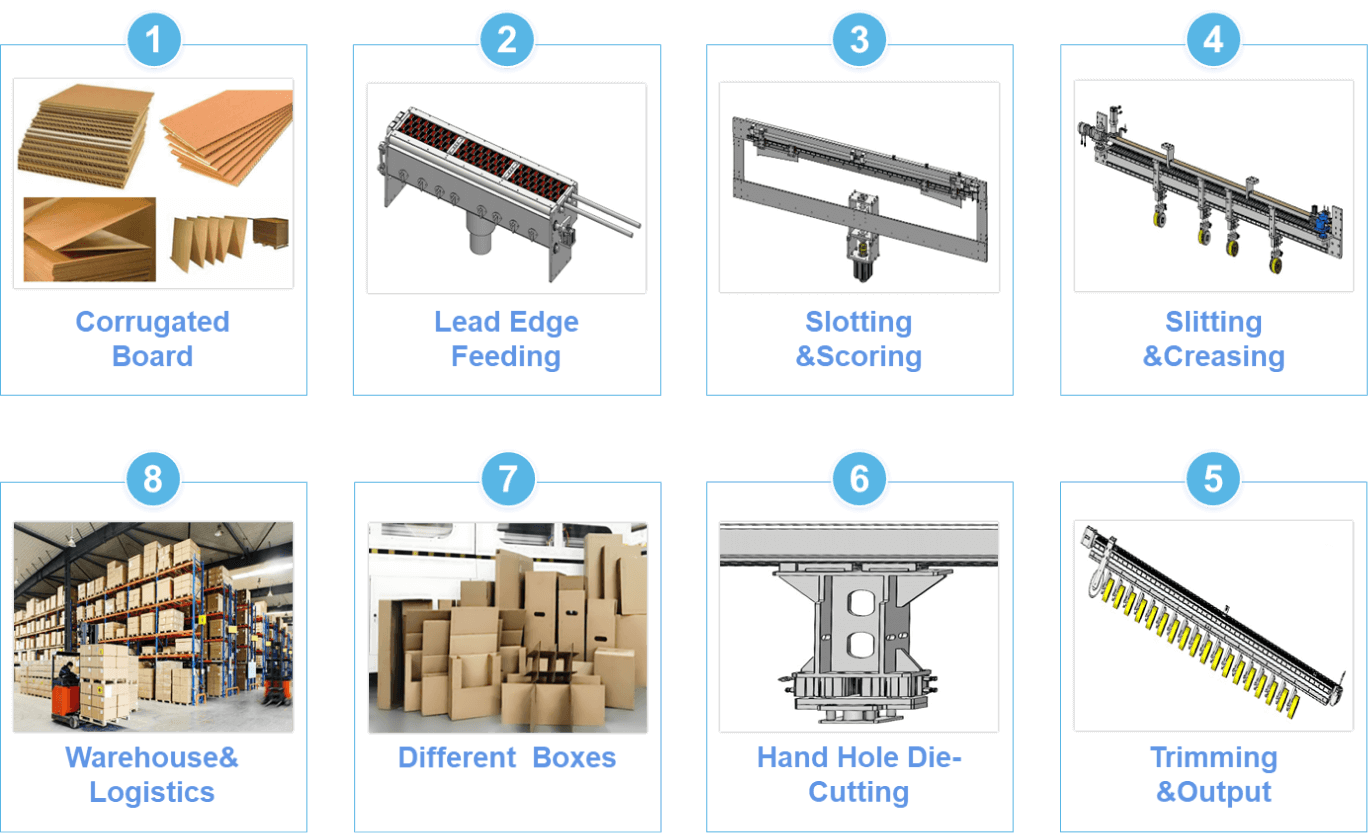

AB2500 Box Making Machine Work Flow

How will the Box On Demand Making Machine bring you more benefits ?

Fully automatic, suitable for box plants with small order quantity & big size cartons.

Flexible dimension adjusting system. All settings can be entered directly through a touch screen panel within one minute.

Labor-saving, cost-saving and easy-operated.

All the settings just need seconds.

Fully automatic, different sizes and different box types at will.

Operation System

Comes with four languages （Chinese, English, Spanish, Korean), can be customized according to customers needs.

Can Keep 2000 Operation Records, no need to repeat the input.

Easy operation, the interface is clear and easy to understand.

More than 85 box styles for your choice

Specification

Size

3500(L) ×1900(W)×2500(H)mm

Weight

3500kg

Power

380V, 50-60HZ, 32A,16KW

Production Rate

400 PCS/Hour

Sheet Type

Sheet

Cardboard density range

Up to 1200g/m²

Max.board size

2500mm Width x Unlimited Length

Min.board size

200mm Width x 650mm Length

Slotting Knife

2 PCS *500mm Length

Switchover Time

5-15 Seconds

Touch Panel

15.6 Inch

Cardboard thickness

2-10mm

Vertical Cutting knife

Scoring/Creasing Wheel

Horizontal Cutting Knife

Air Pressure

0.6-0.7MPa

Box styles

More than 85 Fefco codes

Servo Motor Qty

2 Sets
