ABL1300 from anypack is an automatic custom packaging system capable
of creating efficient custom-boxes from a continuous fanfold corrugated.
Designed to address the needs of shippers, such as e-commerce and
fulfillment companies, that need to procure and stock multiple size
boxes to satisfy varying packaging needs. ABL1300 gives them the ability
to reliably package and ship right-sized single and multi-item orders.
Brief introduction
The ANYPACK custom packaging system optimizes all steps of package
fulfillment by creating fit-to-size boxes for variable-dimension,
single- or multi-item orders. With the ANYPACK ABL1300 you can see
immediate return on investment and package orders with complete
confidence.
Download Brochure
How will the Box On Demand Making Machine bring you more benefits ?
Minimizing Freight Cost by 20%-35%
Optimizing Warehouse Space by 40%
Reducing the Labor by 75%
Reducing Using the Cardboard by 28%
Increasing Throughput by 50%

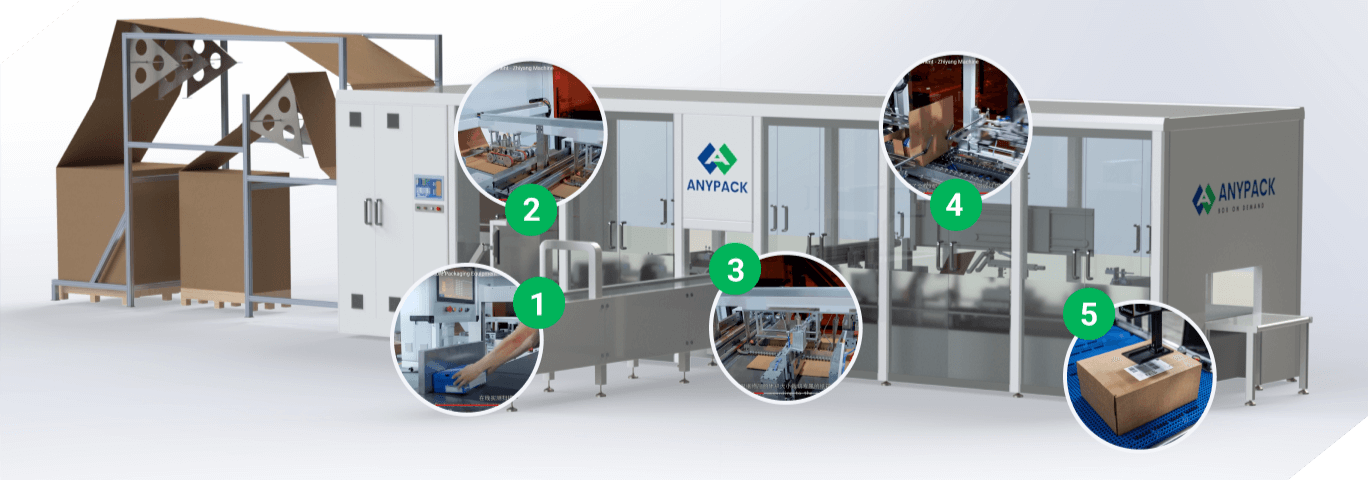

Fully Automatic Packaging On Demand System
1. SCANNING: Put the product into the scanner to
measure the overall size of the product or use WMS/ERP integration
to receive proper dimensions.
2. INFEED: Load 1000/1300 mm wide corrugated fanfold
paper based on scanned information. The cutter will cut the right
length of each paper sheet. Then conveyed to the feeder.

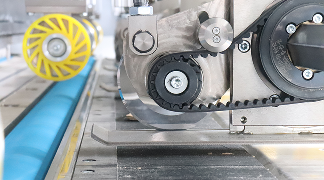

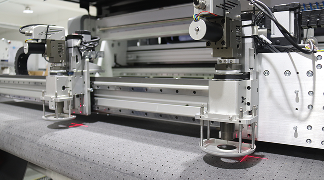

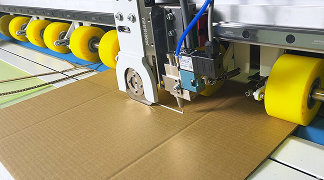

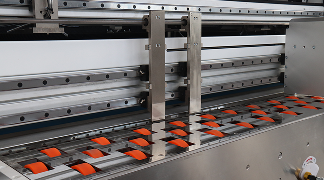

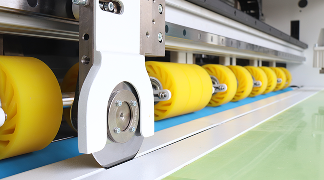

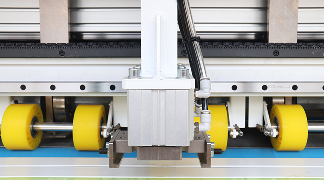

3. CUTTING & SLITTING: The paper selector sends the
paper and cut to the right length. The slitting process helps format
the paper with vertical/horizontal operations( slitting,
creasing,slotting).
4. PLACING &PACKING: The conveyor belt moves the
product above the cardboard, the machine automatically glue and
folds the proper sides of the box.
5. LABELING: The packed product moves the labeling
stand where the system sticks a pre-printed label. The last step is
the scanning process to avoid any database errors and mislabeling.
Specification
Download Brochure
Size
6500mm×15000mm×3500mm (W×L×H）
Weight
10000KGS
Powder
380V, 50-60HZ, 50A, 20KW
Production Rate
1000 Units/Hour
Sheet Type
Fanfold
Max Box Size
800mm×600mm×215mm (W×L×H）
Min Box Size
240mm×150mm×35mm (W×L×H）
Sheet Thickness
2.5mm~8mm
